Eachine V-tail 210 FPV Drone 1080P DVR F3 EVO 5.8G 40CH 200mW OSD w Eachine I6 RTF


Eachine V-tail 210 FPV Drone 1080P DVR F3 EVO 5.8G 40CH 200mW OSD w Eachine I6 RTF

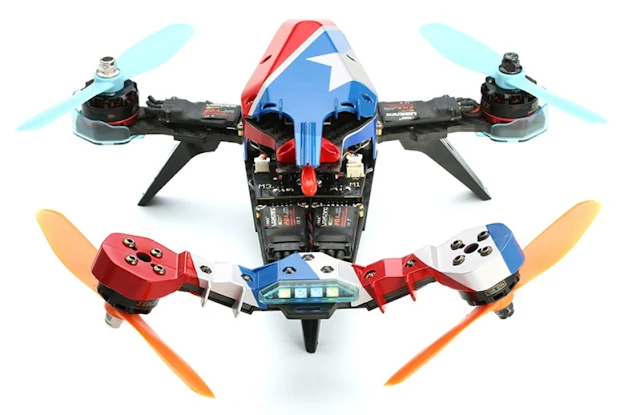

The Eachine V-tail 210 is a very cool FPV Racing drone. The unique shape and cool painting make it stand out from the crowd. With a new V-tail body design and carbon fiber material, it has superior ruggedness and anti-drop ability.
The Eachine V-tail 210 based on F3 EVO -- the new generation hardware platform, which can provide Jaw-Dropping Flight Performance. Internal ARM Cortex-M4 72Mhz CPU with Math co-processor (FPU) for efficient flight calculations that gets more done in less time. It means that the Loop times up to ~2x as fast as previous-generation STM32F1 based boards
The Eachine V-tail 210 employed the acclaimed EMAX RS2205 motor with Emax Lighting 20A ESC which running BLHELI latest firmware, so the aircraft has super-fast response and superior power, and bring you a very pleasant FPV flying experience.


Items Specifications
V-tail 210 FPV Drone

Painting : Red & Blue or Black & Yellow
Size : 170mm*155mm*55mm
Wheelbase : 220mm
Flight weight : 570g
Frame weight : 170g
RC inpu t: SBUS/PPM/DSM/DSM2/DSMX Compatible


F3 EVO Flight controller

CPU : STM32F303CPU,72Mhz inc FPU
Accelerometer : MPU9250 accelerometer/gyro/compass (connected via SPI)
Barometer : BMP280
Micro SD card slot : SD/SDHC, up to 32GB
Size : 23mm*28.5mm*5mm
Weigt : 4g
Firmware release : Cleanfilght SP Racing F3 EVO R1.13.0


Emax RS2205 Motor

KV : 2300
Configuration : 12N14P
Diameter : 27.9mm
Length : 31.7mm
Shaft diameter : 3mm
Weight(g) : 29
Idle current(10)@10V(A) : 0.35
No. of Cells(Li-po) : 2~4S
Max. continuous power(W)180S : 135
Internal resistance : 118mO
Max. current(180S) : 12A
Max. effciency current : (2-7A)>83%


Emax lightning-20A ESC

Continuous current : 20A
Burst current : 30A(10s)
Li-po battery : 2s-4s


Gemfan 5045BN Bullnose propeller Length: 5inch
Camera

Video format : NTSC or PAL switchable
Effective pixel : 1920(H)x1080(V)
Sensor : 1/3 inch HD CMOS
Focal length : 3mm
Lens angle : H:90 degree V: 90 degree
Working voltage : 5V
Working current : 80mA
Weight : 4g


HMDVR-HD

Video format : NTSC or PAL Switchable
Records effective pixel : 1920(H)x1080(V)
Records frame rate : 60Frames
Compress format : MOV
Video output size : 640x480
Size : 50mm x 22mm
Weight : 6g
Max support 32G TF Card
Auto-save function : Auto-save every 5 minutes


5.8G 40ch 200mw video transmitter
Wireless channel : 40CH
Modulation : Broadband FM
Support video format : NTSC/PAL
Video input impedance : 75 Ohm
Audio input impedance: 10K Ohm
Output signal : 23~24dBm
Output Power : 400mw(Max)
Working voltage : 5V
Working current : 500mA
Operating Temperature :  -10°C ~ +60°C
Antenna Connector : RPSMA Connector


Frequency Table
 Frequency band A  5740 5760 5780 5800 5820 5840 5860 5880
 Frequency band B 5865 5845 5825 5805 5785 5765 5745 5725
 Frequency band C 5733 5752 5771 5790 5809 5828 5847 5866
 Frequency band D 5705 5685 5665 5645 5885 5905 5925 5945
 Frequency band E 5658 5695 5732 5769 5806 5843 5880 5917
OSD


Firmware version: MW OSD R1.5
Video output format: PAL/NTSC ,select in the Configure soft
Display info: AHI(Attitude line), Fly mode, voltage, Fly time ,Longitude, Latitude, Armed status and etc..

Battery

Capacity(mAh): 1500
Cells (s): 4
Discharge (c): 50
Weight (g): 165
Max Charge Rate (C): 5
Length(mm): 89
Width(mm): 30
Height(mm): 30
Connector: XT60


Charsoon DC 4S balance charger
Input: DC 9V-13V (=30W)
Current: 1000mA / 1500mA (Balance)
Accuracy: 4.20V ±10mV

Detector Spec:
Operation: connect battery only
Display: voltage of all & each cells
Accuracy: 0.1V
Usage: 2-4S Li-Poly / Li-lon battery


Eachine I6 2.4G 6CH remore control

Channels : 6 Channels
Model type : Glider/Heli/Airplane
RF range : 2.40-2.48GHz
Bandwidth : 500KHz
Band : 142
RF power : less than 20dBm
2.4ghz system : AFHDS 2A and AFHDS
Code type : GFSK
Sensitivity : 1024
Low voltage warning : less than 4.2V
DSC port : PS2; Output:PPM
Charger port : No
ANT length : 26mm*2 (dual antenna)
Weight : 392g
Power : 6V 1.5AA*4
Display mode : Transflective STN positive type, 128*64 dot matrix VA73*39mm, white backlight.
Size : 174x89x190mm
On-line update : yes
Color : Black
Certificate : CE0678, FCC
Model memories : 20
Control range: 500m


Eachine  X6 receiver

Channels: 6 (PPM)
Model: multi-rotor
RF range: 2.408-2.475 GHz
Band width: 500KHz
Number of bands: 135
RF power: not more than 20dBm
RX sensitivity: -95dBm
2.4G protocol: AFHDS 2A
Modulation type: GFSK
Stick resolution: 1024
Low voltage alarm: Yes
DSC port: PPM
Antenna length: 93mm (dual antenna)
Input power: 4.0-8.4V
On-line update: yes (wireless)
Range: >300m
Weight: 4.5g
Size: 36*22*7.5mm
Certification: CE0678,FCC ID: N4ZX6B00


Eachine V-tail 210 ARF RTF FPV Racing Quadcopter manual.pdf

Package included:
1 x Eachine V-tail 210 FPV Drone
1 x Eachine I6 2.4G 6CH remore control
1 x Eachine X6 receiver
2 x Emax RS2205 KV2300 brushless motor CW
2 x Emax RS2205 KV2300 brushless motor CCW
4 x Emax lightning 20A ESC
2 x Gemfan 5045BN propeller blue or black CW
2 x Gemfan 5045BN propeller blue or black CCW
2 x Gemfan 5045BN propeller orange CW
2 x Gemfan 5045BN propeller orange CCW
1 x F3 EVO flight controller with Micro SD card slot
1 x F3 flight controller dedicated GPS


1 x PDB + OSD + buzzer + BEC + OSD + adjusting-parameter tool
1 x 1080P 60Frames DVR with HD camera
1 x 5.8G 40CH 200mw transmitter
1 x Bluetooth adjusting-parameter module
1 x 4S 14.8V 1500mah 35C XT60 battery
1 x Charsoon DC 4S balance charger
1 x Antenna
1 x Battery strap
1 x USB cable
1 x Wrench
1 x Manual
