RC ALZRC Devil 450 Pro FBL Kit Empty Helicopter

ALZRC Devil 450 Pro FBL Kit Empty Helicopter 2

RC ALZRC Devil 450 Pro FBL Kit Empty Helicopter


Description:

? Color: Black / Silver
? Body length: 635mm
? Body Height: 230mm
? Main rotor diameter: 710mm
? Tail rotor diameter: 158mm
? Motor main gear: 13T
? Transmission main gear: 150T
? Tail Drive Gear: 106T
? Tail drive gear: 25T
? gear ratio: 1: 11     5:4.24

 ALZRC Devil 450 Pro FBL Kit Empty Helicopter 1

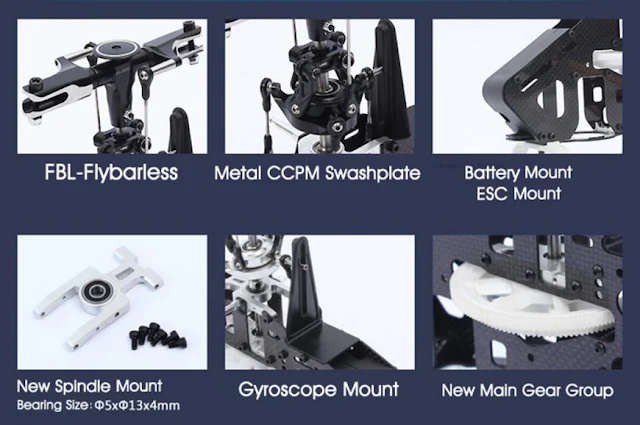

Features:

-flybarless rotor group, in favor of 3D flight.
-New improved design of the fuselage side, especially set the gyroscope with a fixed position,it can be placed inside the fuselage or swashplate  guide plate so that the helicopter structured wiring, look more simple and beautiful.
-The integrated spindle and servo mounts, and modify the site link with the side, so that the server is easier disassembly, repair time increase  convenience.

 ALZRC Devil 450 Pro FBL Kit Empty Helicopter 3

-Integrated battery / governor holder, in addition to the battery holder allows more stable, but also according to different specifications of the battery, the battery holder position adjustment to achieve the optimum focus state helicopter. In addition, reducing the number of screws can be installed  more quickly and reduce time to repair the machine.
-high efficiency tail shaft drive design, dramatically reduce power consumption when the belt drive, the relative increase in dynamic performance  when flying.

 ALZRC Devil 450 Pro FBL Kit Empty Helicopter 4

-Vertical Tail server mounts designed to allow the helicopter to focus more on the center of gravity position, so that 3D flight have superior athletic  performance.
-Unique tapered tail rotor centrifugal force balance clip seat design, effectively increase rudder and gyro performance, so that the tail rudder lock and  operating effect is more solid and more accurate.

 ALZRC Devil 450 Pro FBL Kit Empty Helicopter 6

Part you need to prepare yourself:

1. Transmitter (6CH above the helicopter mode remote control)
2. The receiver (6CH above)
3. The pitch gauge or digital pitch gauge
4.11.1V 3S Li-Po 2000 ~ 2300mAh battery Click here

 ALZRC Devil 450 Pro FBL Kit Empty Helicopter 7

5. brushless motor x 1
6. Brushless ESC x 1
7.CCPM metal miniature digital servo x 3
8. The digital lock Rudder x 1
9. The three-axis gyroscope Set x 1
10. Plug Set x 1

ALZRC Devil 450 Pro FBL Kit Empty Helicopter 8

Note:

This is an empty helicopter without dryer hood, main rotor, motor fixing screws, motor gear, rotor support, installation tool, please prepare yourself.

Package Include:

1 x empty helicopter ( DIY part )

ALZRC Devil 450 Pro FBL Kit Empty Helicopter 2
