Huina Metal Arm Upgrade Review: Heavy-Duty Boom, Dipper & Bucket Driving Rods for RC Excavators
The modern RC heavy equipment hobby has evolved far beyond lightweight plastic novelty toys, entering a new era of authentic scale engineering, functional mechanics, and realistic earthmoving power. Among hobbyists who operate scale construction sites in their backyards or scale modeling arenas, stock radio-controlled excavators often reveal a critical bottleneck: factory plastic boom linkages and flexible actuator housings that twist, strip, and crack under physical strain. For dedicated operators, modders, and builders demanding industrial-grade resilience, the Huina Professional Metal Strength Main Arm, Second Arm, and Bucket Arm Driving Rod Upgrade Set stands out as the ultimate mechanical enhancement. Replacing vulnerable polymer linkage rods with high-density cast zinc-aluminum alloy mechanics, this complete conversion kit dramatically increases breakout digging torque, eliminates structural arm flex, and provides authentic scaled digging performance capable of trenching through real packed soil and aggregate.
Engineered specifically as a direct drop-in retrofit for Huina’s popular 15-channel and full-metal chassis platforms (including the legendary Huina 1550, 580, and related scale excavator variants), this precision driving rod set replaces all three pivotal movement axes: the primary boom (main arm), the intermediate dipper stick (second arm), and the bucket curl linkage (bucket arm). Built with reinforced brass-bushed pivot sleeves, hardened steel threaded drive lead-screws, and thickened metal structural ribbing, the mechanism transfers rotational torque from the internal electric motors directly to the excavation face without elastic energy loss. While standard plastic linkages flex and absorb up to 40% of the motor’s linear thrust, these rigid alloy arms channel 100% of the mechanical energy straight into the cutting teeth of the bucket, enabling genuine digging into compact dirt rather than simply skimming loose surface sawdust.
Furthermore, upgrading to full metal linkages introduces essential ballast weight to the excavator's front boom assembly. This increased front-end mass lowers the machine’s center of gravity during ground penetration, dampening mechanical vibrations and eliminating the annoying "chatter" and bucking movements common to featherlight plastic toy excavators. If you have ever felt frustrated watching your excavator’s boom warp and stall out against tiny garden stones or compacted soil roots, installing the Huina Professional Metal Driving Rod set provides the transformative leap in realism, strength, and durability that elevates your RC construction model into a true miniature earthmoving machine.
Mechanical Anatomy: Boom, Stick & Bucket Linkage Engineering

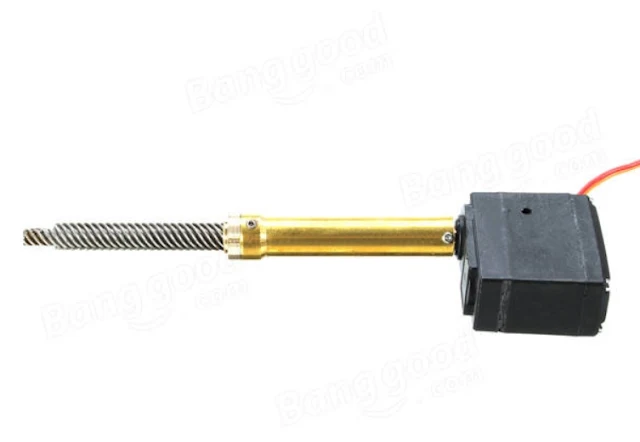

Understanding the mechanical superiority of this Huina upgrade kit requires looking closely at how multi-link excavator kinematics operate under heavy load conditions. In full-scale hydraulic machines like Caterpillar or Komatsu excavators, enormous hydraulic cylinders extend and retract to articulate the boom and stick. In electric screw-drive RC excavators, high-torque reduction gearboxes spin internal threaded lead-screws situated inside the driving rods. When an operator commands the bucket to curl into a trench, tremendous tensile and compressive loads shoot through every joint. Factory plastic rods flex outward under this load, misaligning the internal drive screw, causing stripped nylon gears and motor stall-outs.
The Huina Professional Metal Strength Set completely resolves these mechanical failures by employing solid cast and CNC-machined metal housing sleeves. The primary main arm (boom) driving rod features an oversized structural spine capable of withstanding heavy downward crowd forces when forcing the bucket into hard-packed clay. The secondary stick driving rod maintains strict linear alignment along its entire stroke length, preventing lateral deflection when swinging loaded material sideways. Meanwhile, the specialized bucket curling linkage features reinforced metal knuckle clevises that resist the acute shearing forces generated when prying rocks or hard roots out of scale trenches.

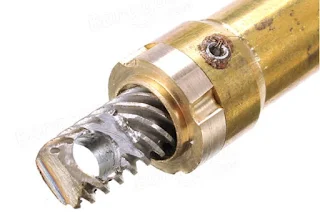

A fascinating engineering detail of these upgraded driving rods is the integration of reinforced metal end-caps and brass pivot eyelets. In stock plastic setups, the pivot pin holes gradually stretch into an oval shape over dozens of operating hours, introducing sloppy joint play, loose bucket wobble, and inaccurate digging articulation. Huina’s machined alloy bushings eliminate this premature ovalization entirely, ensuring that your linkage tolerances remain tight, accurate, and predictable even after hundreds of hours of scale quarry excavation.
Another fascinating curiosity regarding these metal driving rods is how they impact electric motor thermal efficiency. When stock plastic arms flex under load, the internal threaded drive shaft binds against the inside casing walls, creating intense parasitic friction that causes the small electric drive motors to draw excessive amperage and overheat rapidly. Because the rigid metal Huina rods maintain perfect geometric concentricity throughout the entire linear stroke, the internal screw turns with minimal frictional resistance. This reduced mechanical drag allows the electric motors to run noticeably cooler, prolonging the lifespan of your excavator’s internal motor brushes and yielding longer operating runtimes on a single Li-ion battery pack.
Real-World Digging Performance & Breakout Torque Gains
The real test of any RC excavator upgrade occurs when the bucket meets raw outdoor substrate. Plastic-armed RC models are generally limited to indoor tabletop demonstrations using aquarium gravel, dried coffee beans, or loose wood pellets; the second they encounter damp backyard dirt or coarse aggregate, the bucket skips across the surface while the plastic arm bows into a visible curve. Installing this full metal driving rod trio completely rewrites those performance boundaries, turning your model into a true miniature quarry tool.
With the reinforced metal boom and stick absorbing the backward reaction forces, the bucket teeth can bite deep into compacted loam and sandy soil with decisive authority. Operators can execute authentic construction cycles: crowding the stick inward, curling the bucket under high resistance to break the subterranean crust, and lifting full, heaped payloads of heavy wet dirt without worrying about cracking plastic joints. The solid metal construction also permits challenging demolition tasks, such as fracturing brittle shale or clearing miniature rubble piles without shattering the actuator linkage arms.
An added performance advantage is the increased inertia and damping effect that metal parts bring to scale excavator movements. Lightweight plastic booms bounce erratically when the operator releases the transmitter joystick, breaking scale realism. The solid mass of the Huina metal driving rods introduces natural mechanical momentum, resulting in smooth, deliberate, heavy-machine motions that mirror full-sized 20-ton hydraulic excavators working on commercial construction job sites.
Hobbyist modders frequently use this metal upgrade set as the structural foundation for custom high-end transformations. The cast alloy metal construction provides sufficient wall thickness for drilling, tapping custom mounting holes, and fitting auxiliary brass hydraulic line mockups or external work LED lights. For those transitioning from electric screw-drive actuators toward micro-hydraulic conversions in the future, these reinforced metal arms offer the rigid structural integrity needed to anchor high-pressure micro cylinders without warping under hydraulic pressures.
Installation Walkthrough & Maintenance Insights
Installing the Huina Professional Metal Strength Driving Rod kit is a straightforward and rewarding mechanical bench project that requires only basic hand tools. Because the set is designed to match the factory geometry of Huina excavator chassis, no cutting, grinding, or permanent chassis modifications are necessary. The conversion process involves extracting the factory hinge pins, unbolting the stock plastic driving arms from the internal drive gearboxes, and transferring the motor drive assemblies into the newly reinforced metal housings.
For optimal performance and long service life, applying a tiny drop of medium-strength threadlocker (such as blue Loctite) onto all metal-to-metal retaining screws during assembly is strongly advised. Because excavators experience constant vibration during heavy digging cycles, threadlocker prevents pivot screws from slowly backing out of the metal clevises. Additionally, packing the internal lead-screw cavity with a high-tack synthetic lithium grease ensures whisper-quiet linear motion, repels micro-fine dirt dust, and prevents metal-on-metal galling over years of outdoor operations.
Routine post-dig maintenance is remarkably simple: after a long session in damp soil or sandbox dust, brush away loose sediment around the push-rod collars using a soft bristle brush and apply a quick spray of dry PTFE lubricant across the pivot joints. This keeps your metal linkage articulating smoothly while preventing outdoor grit from adhering to the sliding surfaces.
Frequently Asked Questions (Q&A)
Q: Which specific RC excavator models are compatible with this Huina metal driving rod set?
A: This upgrade kit is primarily engineered for Huina 15-channel and full-metal excavator chassis platforms (such as the Huina 1550, 580, and direct mechanical clones). Its mounting dimensions and linkage geometry align with factory mounting holes for a seamless drop-in fit.
Q: Does adding metal driving rods cause the electric drive motors to strain or burn out?
A: Surprisingly, no! While the metal arms add beneficial ballast weight, their rigid construction prevents the internal drive lead-screws from bending and binding under heavy excavation loads. By eliminating friction caused by flexed plastic housings, the electric motors actually run smoother and cooler.
Q: Does this complete kit include the internal electric motors, or is it purely mechanical linkages?
A: The package includes the three heavy-duty metal exterior driving rods (Main Arm, Second Arm, and Bucket Arm) complete with mechanical joints. Operators transfer their existing internal electric gear motors and drive screws into these reinforced metal sleeves during assembly.
Q: Can an RC excavator equipped with these metal arms dig into real garden dirt and gravel?
A: Yes! Unlike plastic arms that flex and skip over packed ground, these rigid metal rods transfer full linear motor thrust directly to the bucket teeth, allowing the machine to slice into compacted dirt, garden soil, and fine stone aggregates with ease.
Pros & Cons
Pros:
1. Uncompromising Structural Rigidity: Solid alloy construction completely eliminates the arm flexing, bowing, and twisting common to factory plastic linkages.
2. Massive Breakout Digging Force: Direct mechanical energy transfer channels full motor torque into the bucket teeth for real outdoor trenching.
3. Heavy-Duty Front Counterweight: Adds valuable front-end scale mass, dampening unwanted chassis bounce and lowering the machine’s center of gravity.
4. Long-Term Wear Prevention: Reinforced metal clevises and brass-bushed pivot sleeves eliminate ovalized hinge holes and loose joint wobble.
5. Drop-In Factory Geometry: Engineered specifically to fit existing Huina excavator chassis without requiring custom cutting or frame modifications.
Cons:
1. Requires Assembly Bench Time: Upgrading all three arms involves disassembling the boom assembly, requiring approximately 45–60 minutes of patient workbench installation.
2. Threadlocker Recommended: Metal-on-metal fastening screws require a small dab of blue threadlocking compound to prevent vibrations from loosening pins during heavy digging.
Ultimately, the Huina Professional Metal Strength Main Arm, Second Arm, and Bucket Arm Driving Rod set represents the single most impactful performance upgrade available for entry- and mid-tier RC excavators. By replacing weak, flex-prone plastic linkages with heavy-duty cast metal mechanics, you transform a fragile scale toy into an authentic, trench-digging miniature earthmover that looks, feels, and operates like the real machine.
