EU 220V LM317 Adjustable Voltage Power Supply Board DIY Learning Kit Review: Essential Workbench Benchtop Power Tool
Every electronics hobbyist, student, and hardware tinkerer eventually reaches a point where experimenting with circuits requires a reliable, adjustable benchtop power supply. Relying on fixed-voltage wall adapters or makeshift battery configurations severely limits your prototyping capabilities. The EU 220V DIY LM317 Adjustable Voltage Power Supply Board Learning Kit With Case is an exceptional educational and practical tool designed to bridge the gap between theory and hands-on electronics assembly. Featuring the classic LM317 adjustable voltage regulator circuit packaged neatly inside a protective protective shell, this DIY learning kit gives you both the rewarding experience of soldering your own lab power supply and a permanent, highly functional benchtop testing instrument for your workspace.
What makes this specific LM317 kit stand out far above basic voltage regulator boards is its multi-functional workbench design. Beyond providing a clean, continuously adjustable regulated DC output ranging from 1.25V to 12V, the integrated circuit board is packed with invaluable diagnostic features. It includes a built-in one-way adjustable signal generator output for injecting pulse signals into test circuits, a logical pen function for verifying logic levels, and an audible buzzer system. This versatile buzzer allows you to instantly check continuity on wires or test low-frequency audio and digital signals without needing to clutter your bench with separate testing modules.

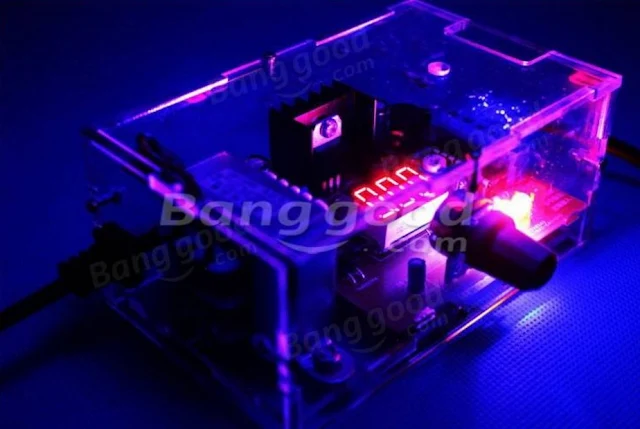

Engineered specifically for European 220V mains electricity via a convenient EU plug, the unit operates at a modest 2W power rating and features compact dimensions (measuring a 7.3 x 6.8cm PCB and an overall shell size of approximately 11 x 6.9 x 4.5cm, weighing a lightweight 295g). The included sturdy protective case ensures that all high-voltage AC input lines and soldered components are safely enclosed, shielding your workspace from accidental shorts while presenting a clean, professional instrument aesthetic. Whether you are teaching yourself basic circuit assembly, testing microcontroller projects, or prototyping custom electronics, this learning kit is an indispensable addition to any workbench.
LM317 Regulation Circuitry & Integrated Diagnostic Tools
At the electronic heart of this board is the legendary LM317 adjustable positive voltage regulator IC, renowned throughout the electronics industry for its robust thermal overload protection, short-circuit current limiting, and excellent line and load regulation. The board steps down and rectifies incoming 220V EU mains voltage, allowing you to dial in precise DC voltages from 1.25V up to 12V using the smooth onboard adjustment potentiometer. This broad, clean voltage range makes it ideal for powering low-voltage microcontrollers, operational amplifiers, relay circuits, LED driver testing, and breadboard prototyping without voltage sag.
What truly transforms this from a standard power supply into a comprehensive testing station is the inclusion of auxiliary diagnostic circuits. The one-way adjustable signal generator output provides a dependable source of square wave pulses, which is immensely helpful when clocking counters, testing digital logic gates, or troubleshooting timer circuits. Furthermore, the built-in logic probe function allows you to quickly evaluate high and low logic states on digital pins without dragging out a bulky oscilloscope.
The smart buzzer circuit adds another layer of everyday utility. By connecting wires to the power positive and signal input terminals, the buzzer provides an immediate acoustic tone for continuity checks—signaling instantly when a wire is intact. Additionally, you can feed low-frequency signals into the input to test signal propagation audibly. Every feature on this board is thoughtfully designed to educate the builder on analog power supply design while equipping them with practical diagnostic tools for future projects.
Frequently Asked Questions (Q&A)
Q: Does this kit arrive fully assembled, or do I need to solder the components myself?
A: This is an educational DIY learning kit. It arrives as a bare PCB alongside all necessary electronic components (resistors, capacitors, diodes, LM317 regulator, transformer/plug connections, and plastic case), requiring you to solder the board together yourself.
Q: What is the input voltage requirement for this power supply kit?
A: The kit is engineered for standard European 220V AC mains electricity and includes an integrated EU plug for direct wall connection.
Q: What is the adjustable output voltage range of the finished power supply?
A: Once assembled, the board provides a continuously adjustable regulated DC output ranging from 1.25V up to 12V.
Q: What additional features are included on the circuit board besides voltage regulation?
A: The board features a one-way adjustable pulse signal generator, a logic probe testing function, and an acoustic continuity/low-frequency signal testing buzzer.
Pros & Cons
Pros:
1. Educational DIY Experience: Perfect soldering project for students and hobbyists wanting to learn linear power supply design.
2. Adjustable 1.25V-12V Output: Provides stable, clean regulated DC voltage suitable for a wide variety of electronics prototyping.
3. Multi-Function Testing Suite: Includes an integrated pulse signal generator, logic pen, and continuity testing buzzer.
4. Protective Enclosure Included: Comes with a custom plastic case that neatly houses the board and protects against exposed AC mains wiring.
5. Compact & Lightweight: Small footprint (295g total weight) doesn't clutter limited workbench space.
Cons:
1. Assembly Required: Requires basic soldering skills and electronic assembly tools to put together before initial use.
2. Low Power Output Limit: Designed as an educational/low-current bench tool (2W rating) rather than a high-amperage power supply for heavy loads.
