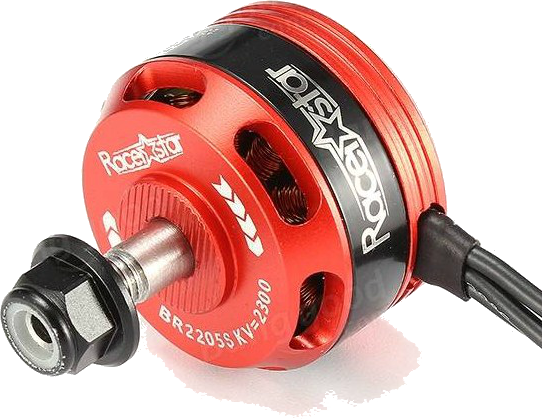

4X Racerstar BR2205S 2300KV Brushless Motor 2-4S FPV Racing Quadcopter Motor 4-Pack Review
Building or upgrading a high-performance FPV racing quadcopter requires a propulsion system that delivers instantaneous throttle response, exceptional thrust efficiency, and bulletproof durability under extreme G-forces. When pushing frames like the X210, X220, or QAV250 through tight racing gates and aggressive freestyle maneuvers, ordinary motors quickly burn out or suffer from bearing failure. The 4X Racerstar Racing Edition BR2205S 2300KV Brushless Motor 4-Pack stands out as one of the most reliable and cost-effective performance upgrades in the drone hobby. Engineered with premium Japanese components and precision CNC-machined aerospace-grade aluminum, this matched set of two CW and two CCW motors provides the explosive thrust and reliability needed to dominate the racetrack.
What makes the Racerstar BR2205S series a favorite among budget-conscious racers and freestyle pilots is its uncompromising build quality and stellar performance metrics. Each motor features an optimized 2300KV rating designed specifically to deliver a sweet spot of torque and top-end speed when paired with 2S to 4S LiPo battery configurations. Weighing a featherlight 29 grams with compact physical dimensions (33mm height and 27.9mm width), the motors add minimal rotational mass to your quadcopter's arms while offering a standard M3 mounting hole pattern and an M5 shaft diameter compatible with a wide array of high-pitch racing propellers.
Performance testing with 6045 propellers reveals the true muscle of these powerhouses: pushing a massive 850g of thrust at 385W peak power with an efficient 2.2 g/W ratio, though drawing a 26A load that demands pairing with a robust 30A or higher ESC. Every individual motor undergoes factory dynamic balancing treatment to eliminate high-frequency vibrations, ensuring your flight controller's gyro reads clean data for silky-smooth FPV video feeds and locked-in tuning stability.
Premium Japanese Components & Anti-Skid Propeller Base Engineering
The longevity of an FPV racing motor is dictated by the quality of its internal metallurgy and bearings. Racerstar spared no expense in selecting top-tier materials for the BR2205S line. Each motor is built around long-life Japanese NMB high-end mute ball bearings and efficient Japanese Kawasaki stator steel plates that minimize eddy current losses. The electromagnetic core utilizes N40SH magnetic steel capable of remaining stable up to 180°C without thermal demagnetization, wound meticulously with 99.99% oxygen-free copper wire to guarantee maximum electrical efficiency and cool operating temperatures during prolonged high-throttle runs.
Structural integrity is further reinforced by a CNC-machined aluminum case crafted from aerospace-grade 7075-T10 / 7050 aluminum alloy, housing an integrated 5mm stainless steel hollow shaft with anti-drop technology. A standout mechanical feature is the upgraded propeller base, which incorporates an anti-skidding screw thread design that securely locks props in place, preventing them from slipping or spinning loose during violent directional snaps and sudden throttle punches. For ease of identification during assembly, CW thread motors feature a distinctive red cap while CCW thread motors come with a black cap.
Electrical connection is simplified with flexible silicone wire leads designed to withstand repetitive bending and high-current demands. Backed by patented balancing techniques and unique internal wiring methods, this 4-pack delivers professional-grade performance that rivals motors twice its price. Whether you are building your first 220-class X-frame or replacing worn-out motors on an existing QAV250 rig, Racerstar ensures uncompromised power in the sky.
Frequently Asked Questions (Q&A)
Q: What battery cell count (LiPo voltage) is recommended for the Racerstar BR2205S 2300KV motors?
A: These motors are optimized for 2S to 4S LiPo battery configurations, delivering an ideal balance of torque and top-end speed on a 3S or 4S setup.
Q: How do I distinguish between the CW and CCW motors in the 4-pack bundle?
A: CW (Clockwise) screw thread motors are easily identified by their red top caps, while CCW (Counter-Clockwise) motors come equipped with black top caps.
Q: What Electronic Speed Controller (ESC) rating should I pair with these motors?
A: Given that peak test draws can reach up to 26A with aggressive 6045 props, it is strongly recommended to pair these motors with 30A or higher ESCs running SimonK or BLHeli firmware.
Q: What frame sizes are best suited for the BR2205S 2300KV motor size?
A: They are designed as a drop-in power upgrade for popular 210, 220, 250, and 280-class FPV racing frames such as the X210, X220, and QAV250.
Pros & Cons
Pros:
1. High-Grade Japanese Bearings: Equipped with durable NMB mute ball bearings and Kawasaki stator steel for long-lasting smoothness.
2. Explosive Thrust Output: Generates up to 850g of thrust on aggressive 6S/6045 props with a responsive 2300KV winding.
3. Anti-Skid Propeller Base: Specially threaded prop adapters prevent propellers from slipping or spinning loose during flight.
4. Factory Dynamic Balancing: Each motor is dynamically balanced to minimize vibrations and protect gyro stabilization.
5. Complete 4-Pack Value: Includes two CW and two CCW motors, providing a full matching set for your quadcopter build.
Cons:
1. Higher Amp Draw: Peak loads up to 26A mean older or underpowered 20A ESCs may overheat under heavy throttle.
2. Standard Hardware Weight: At 29g per motor, they are robustly built rather than being ultra-micro featherweight racing units.
