AI.Frame Apollo AIF-44-0 Humanoid DIY Robot Kit Review: Open-Source Programmable Smart Robot
The world of robotics and open-source hardware prototyping has unlocked incredible opportunities for students, developers, and hardware hobbyists to build and program custom mechanical systems. For anyone looking to dive into humanoid robotics, microcontroller programming, and servo-driven motion control, the AI.Frame Apollo AIF-44-0 Humanoid DIY Robot Kit stands out as an exceptional, feature-packed learning platform. Designed as an open-source, miniature humanoid robot, the Apollo kit offers high versatility, abundant upgrade paths, customizable commands, and a rewarding self-assembly build process that brings advanced robotics right to your desktop or workbench.

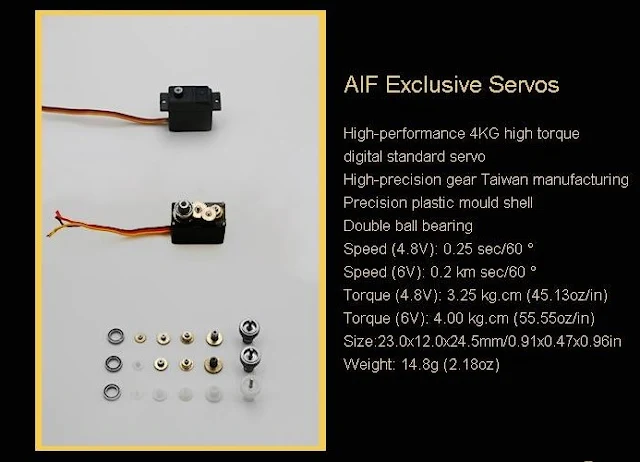

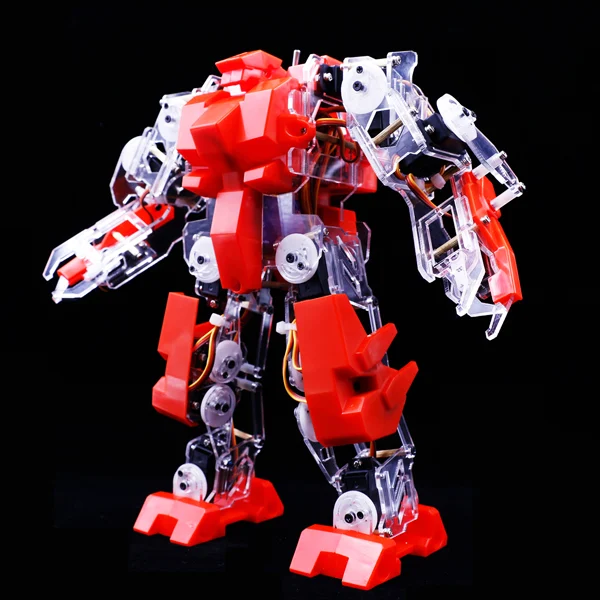

At its mechanical core, the Apollo robot is driven by 16 metal micro actuators featuring an all-metal gear construction with built-in overload protection and a robust 4 kg.cm torque rating. The underlying structural skeleton is crafted from precision laser-cut acrylic sheets, while the outer housing shell is produced using advanced 3D printing technology from durable ABS engineering plastic. Measuring a compact 18 x 11 x 22 cm with a total weight of approximately 680 grams, the robot strikes an optimal balance between structural rigidity and agile maneuverability. Powering the system is an 850 mAh rechargeable battery designed to support interactive play and wireless remote commands.
Control and customization are where the Apollo kit truly shines. The main control board is built around a high-performance STM32 CPU compatible with Arduino, featuring a 32-servo control board capable of outputting 32 channels of 50Hz PWM signals. Integrated Bluetooth 4.0 protocol allows seamless wireless communication with intelligent mobile devices, supported by dedicated Android and iOS graphical control software that makes programming actions, routines, and custom commands intuitive and accessible. Whether you are a beginner exploring servo kinematics or an advanced programmer looking for an open-source robotic canvas, the AI.Frame Apollo delivers endless potential.
Open-Source Flexibility & 32-Servo STM32 Control Architecture

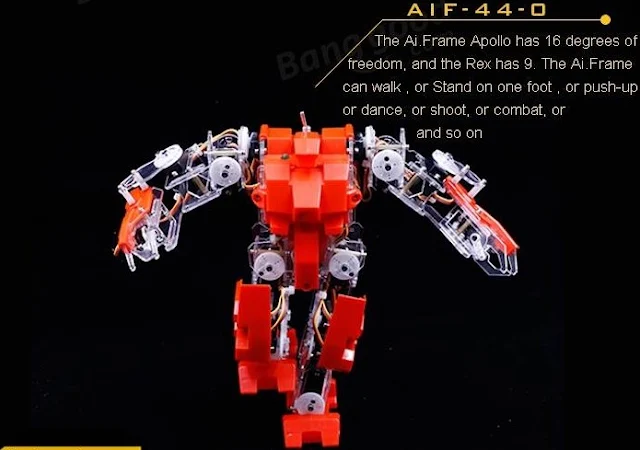

Engineering a bipedal humanoid robot requires precise timing, multi-axis synchronization, and robust power management. The AI.Frame Apollo addresses these challenges through its advanced 32-channel PWM control board managed by a reliable STM32 core. This processing power ensures that all 16 metal micro actuators execute coordinated movements smoothly, allowing the robot to perform complex humanoid actions like walking, balancing, and gesturing. Furthermore, the power management board features essential built-in safeguards including low-voltage protection and overload protection, preventing electrical burnout during intense operational testing.

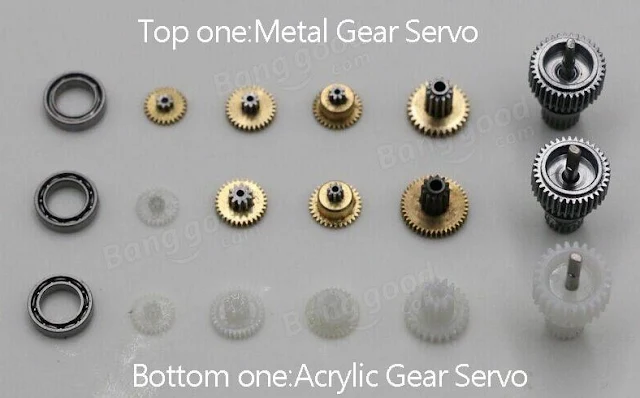

Customization extends far beyond software routines into the physical aesthetics of the robot. The ABS engineering plastic housing is produced via 3D printing and is available in multiple distinct shell styles. Because the platform is fully customizable, users can even design and 3D print their own favorite custom shell styles, adding personalized names or logos directly onto the outer armor. The kit is available in two distinct variations—Acrylic Gear Servo and Metal Gear Servo—giving builders options depending on their performance requirements and budget.
Interaction is streamlined through modern wireless standards. Utilizing Bluetooth 4.0, the robot pairs effortlessly with smartphones and tablets running custom Android and iOS applications. The graphic control software enables users to drag-and-drop motion sequences, adjust servo positions visually, and trigger pre-set commands without needing complex coding experience from scratch. For developers, the open-source nature of the platform invites deep-dive programming, sensor integration, and limitless expansions.
Frequently Asked Questions (Q&A)
Q: Does the AI.Frame Apollo kit arrive fully assembled or do I need to build it myself?

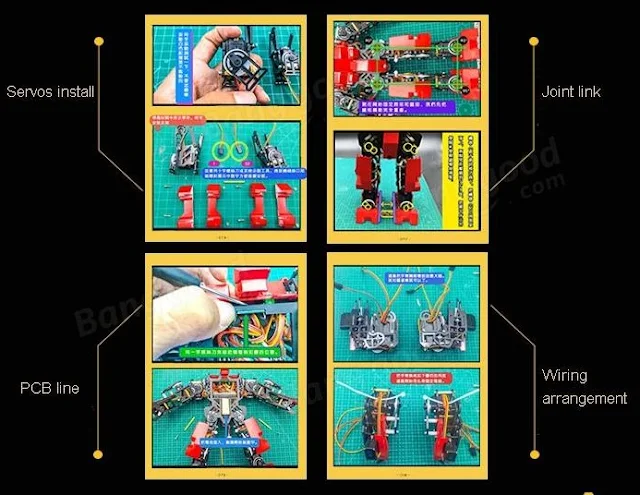

A: This product is supplied as a DIY parts kit, meaning it requires self-assembly. Building the mechanical frame, mounting the servos, and wiring the electronics are part of the hands-on learning experience.
Q: What operating systems are supported by the mobile app remote control software?
A: The Apollo robot supports both Android and iOS mobile devices via Bluetooth 4.0 wireless communication.
Q: How many actuators / servos does the robot use to control its movements?
A: The robot is equipped with 16 metal micro actuators featuring all-metal gears with overload protection and a 4 kg.cm torque rating.
Q: Is the robot compatible with Arduino development environments?
A: Yes, the AI.Frame Apollo is fully compatible with Arduino and features an STM32-based main control board supporting 32 channels of PWM output.
Pros & Cons
Pros:
1. Open-Source Programmability: Highly customizable architecture compatible with Arduino and STM32 development.
2. 16 Metal Micro Actuators: Durable all-metal gear servos with 4 kg.cm torque and overload protection.
3. Wireless App Control: Bluetooth 4.0 connectivity supporting intuitive graphical control apps on Android and iOS.
4. Customizable Shell Design: 3D-printable ABS plastic housing allows users to create custom shell styles and print personalized logos.
5. Comprehensive Safety Features: Power board includes integrated low-voltage and overload protection circuits.
Cons:
1. Self-Assembly Required: As an advanced DIY kit, building the robot requires patience, mechanical assembly skill, and wiring proficiency.
2. Battery Capacity: The included 850 mAh battery provides moderate active runtimes, requiring recharges or spare packs during extended coding sessions.
