DIY Music Spectrum LED Flash Kit & Mini Amplifier Speaker Kit Review: Interactive Audio Visualizer Project
The intersection of sound and visual arts has always fascinated electronics hobbyists, turning simple audio signals into mesmerizing, dancing light shows. For makers, students, and audio enthusiasts looking for a rewarding soldering project that combines functional acoustics with vibrant LED visualizers, the DIY Music Spectrum LED Flash Kit with DIY Amplifier Speaker Kit is an exceptional desktop kit. Featuring both a dedicated music spectrum display and a matching 3W stereo amplifier speaker system housed in protective acrylic cases, this dual kit lets you build a complete, interactive audio-visual setup from raw components.
Designed with hands-on learning in mind, the package includes both the electronic LED flash kit and the mini speaker amplifier kit, requiring circuit board assembly and soldering. The LED music spectrum analyzer measures 108 x 70 x 16 mm, runs on a standard 5V USB power supply, and connects via a 3.5mm audio line input to pulse in real time with your music. Meanwhile, the matching mini speaker kit features dual 3W channels driving 50mm speakers housed in a compact 70 x 70 x 76 mm acoustic enclosure, complete with its own integrated LED music spectrum display to tie the entire visual experience together.
Whether placed on an office desk, gaming setup, or workbench, the finished units offer a clean, professional aesthetic thanks to their included transparent protective housings. Combining practical electronics fabrication with rewarding acoustic output, this DIY bundle delivers hours of educational fun and eye-catching desktop entertainment.
Circuit Soldering & Dual Audio-Visual Performance
Building this kit provides an ideal exercise in component-level soldering and circuit board assembly. Builders populate the clean white PCBs with resistors, capacitors, integrated circuits, and high-brightness LEDs before mounting the electronics securely inside the custom-cut acrylic housings. The process reinforces fundamental electronics skills while teaching how audio signals are filtered, processed, and translated into visual light patterns across a spectrum grid.

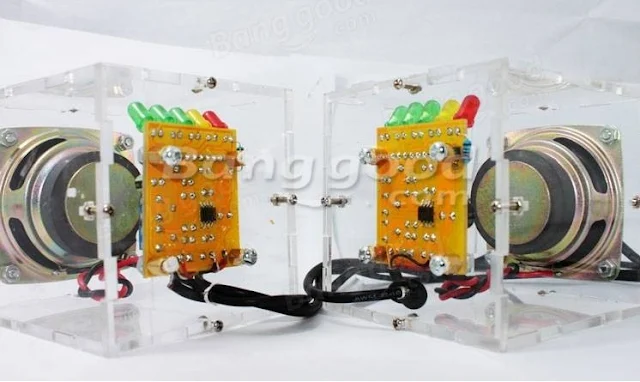

The acoustic performance is driven by the 3W per channel amplifier speaker kit, which delivers surprisingly crisp, clear sound for its compact footprint when connected to phones, computers, or MP3 players via standard 3.5mm audio cables. As music plays through the speakers, the embedded LED spectrum display reacts dynamically to treble and bass frequencies, creating a synchronized light display that pulses to the beat of your favorite tracks.
With a combined weight of approximately 540g across both kits, the finished hardware feels substantial and well-protected. The USB-powered design ensures convenient plug-and-play operation without needing specialized power adapters, making this dual DIY kit a fantastic gift for aspiring engineers and electronics hobbyists.
Frequently Asked Questions (Q&A)
Q: Does this kit arrive fully assembled, or is soldering required?
A: This is a DIY electronics kit. Both the LED flash spectrum board and the mini amplifier speaker board require circuit board assembly and soldering.
Q: How do the LED lights receive and react to the music signal?
A: Both units accept audio signals via a standard 3.5mm audio line input, translating the incoming sound frequencies into real-time LED spectrum visualizer displays.
Q: What power source is required to operate the LED spectrum and speaker kits?
A: The electronic LED flash kit operates on a standard 5V USB power supply for convenient desktop use.
Q: Are protective housings included in the package box?
A: Yes! This package includes protective transparent acrylic housings for both the music spectrum LED kit and the mini speaker kit.
Pros & Cons
Pros:
1. Dual Kit Value: Combines both a music spectrum LED flash kit and a 3W mini amplifier speaker kit in one bundle.
2. Protective Housings Included: Transparent acrylic enclosures protect the internal circuitry while offering a clear view of components.
3. Real-Time Audio Visualization: LEDs pulse dynamically in sync with incoming 3.5mm music signals.
4. USB Powered Convenience: Operates easily off standard 5V USB power sources.
5. Rewarding STEM Project: Excellent hands-on soldering practice for electronics learners and hobbyists.
Cons:
1. Soldering Skills Required: Assembles from loose circuit components, requiring a soldering iron and basic electronics assembly experience.
2. Wired Audio Connection: Relies on 3.5mm audio lines rather than Bluetooth wireless streaming for music input.
